CNC stands for Computer Numerical Control. CNC machines are tools controlled by computers. Instead of a person manually operating the machine, a computer program dictates exactly how the machine moves and cuts a workpiece, which can be made of metal, wood, plastic, and more. This revolutionized manufacturing because:

Accuracy and Consistency:

CNC machines can achieve a level of precision that’s impossible by humans, and they can repeat the same process over and over again perfectly.

Efficiency:

CNC machines can run with minimal supervision, which reduces labour costs and increases production speed.

Complexity:

CNC machines can create highly complex shapes that would be very difficult or impossible to make manually.

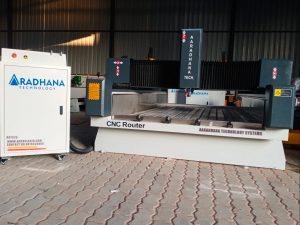

CNC Machine

This means that CNC machines have made manufacturing faster, cheaper, and more capable of producing intricate parts.

Importance of choosing the right CNC machine

Choosing the right CNC machine for the job is crucial as it impacts several important factors in your manufacturing process:

  • Quality and Precision:  The machine’s capabilities need to match the required tolerances of your parts.  The wrong machine might not be able to achieve the necessary level of detail.
  • Efficiency and Cost:  A machine overpowered for the job is a waste of money. Conversely, an underpowered machine might struggle to complete cuts or work too slowly.
  • Material Compatibility:  Different CNC machines are suited for different materials.  Using the wrong machine could damage the material or the machine itself.
  • Production Volume:  For high-volume production, you’ll need a machine that can handle the workload and ensure consistent quality throughout the batch.

In short, the right CNC machine optimizes your production for precision, cost, and efficiency.

Categorize CNC machines based on function:

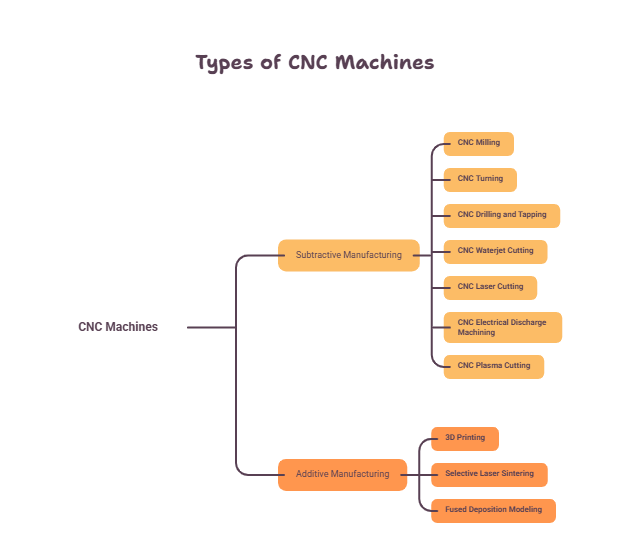

CNC machines can be categorized into two main functions: Subtractive and Additive manufacturing. Subtractive manufacturing removes material from a workpiece so as to create the desired shape, while additive manufacturing builds up the part layer by layer. Here’s a breakdown of the different categories of CNC machines based on their function:

Subtractive Manufacturing

  • Milling: This process uses a rotating cutting tool to remove material from a workpiece. 3-axis milling machines can move the tool along three linear axes (X, Y, and Z), while 5-axis machines can also tilt and rotate the tool for more complex cuts.
  • Turning: In turning, the workpiece rotates on a spindle while a cutting tool cuts away material to create cylindrical or conical shapes. CNC lathes are well-suited for producing parts like shafts, gears, and bearings.



  • Drilling and Tapping: CNC drilling machines use drill bits to create holes in a workpiece. Tapping machines create threads inside the drilled holes. These machines are often used in conjunction with milling machines for comprehensive part creation.
  • Waterjet Cutting: This process uses a high-pressure stream of water mixed with abrasive particles to cut through a variety of materials. It’s a versatile option for cutting intricate shapes from flat sheets of metal, plastic, or even stone.

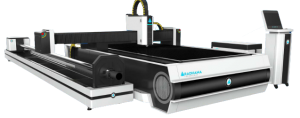

  • Laser Cutting: A CNC laser cutting uses a focused laser beam to melt and vaporize material, removing it from the workpiece. This is a fast and precise method for cutting intricate shapes from sheet metal or other flat materials.

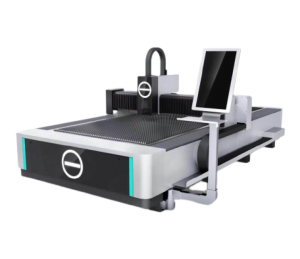

CNC Laser Cutting

  • Electrical Discharge Machining (EDM): EDM uses electrical discharges to erode material from the workpiece. It’s useful for creating very small or complex features, or for cutting hard materials that are difficult to machine with traditional methods.
  • Plasma Cutting: This process uses a plasma torch to cut electrically conductive materials. It’s a faster and more cost-effective option than laser cutting for thicker materials.

READ MORE: Fiber Welding Machine

Additive Manufacturing

  • 3D Printing: 3D printers use a computer-controlled process to create three-dimensional objects by depositing material layer by layer. There are different 3D printing technologies, such as FDM (fused deposition modelling), SLA (stereolithography apparatus), and SLS (selective laser sintering).
  • Metal Additive Manufacturing: This is a specialized form of 3D printing that uses lasers or electron beams to melt metal powder and build up complex parts layer by layer. It’s used in industries like aerospace and medicine to create parts that are difficult or impossible to manufacture with traditional methods.

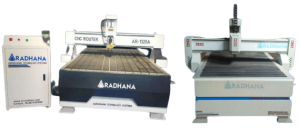

CNC Machine

Choosing the right CNC machine for your project depends on the specific requirements of the part you’re making, including the material, size, complexity, and required tolerances.

Categorize CNC machines based on a number of axes:

CNC machines can be categorized based on the number of axes they have for movement and control. Here’s a breakdown of the most common categories:

2-Axis CNC Machines:

These are the most basic and have limited functionality. They typically move along two axes, most commonly X (horizontal) and Z (depth) or Y (vertical) and Z. Examples include CNC lathes for turning cylindrical parts and some wire EDM machines for specific wire erosion tasks.



2.5-Axis CNC Machines:

These are a variation of 2-axis machines with some limited rotary capability. While not a true third axis, it might allow for tilting the tool or workpiece along a single additional axis (often A or B) for machining at an angle on a flat surface. They can be useful for simple 3D features with limited contouring.



3-Axis CNC Machines:

These are the most widely used and versatile type. They offer full linear movement along the X (horizontal), Y (vertical), and Z (depth) axes. This allows for machining complex 3D shapes from a solid block of material. Milling machines, drilling and tapping machines, and many basic machining centres fall under this category.



4-Axis CNC Machines:

Adding a fourth axis to a 3-axis machine provides one additional rotary axis. This is typically the A-axis for rotation around the X-axis or the B-axis for rotation around the Y-axis. This allows for machining multiple sides of a part without needing to reposition it, improving efficiency for specific applications.



5-Axis CNC Machines:

These are the most advanced and offer the greatest flexibility. They combine the three linear axes (X, Y, Z) with two rotary axes (usually A and B, or A and C). This allows for simultaneous movement on all five axes, enabling the machining of highly complex, 3D shapes from any angle. They are well-suited for intricate parts in industries like aerospace, medical, and mould-making.

READ MORE: Automatic Coil Laser Cutting Machine

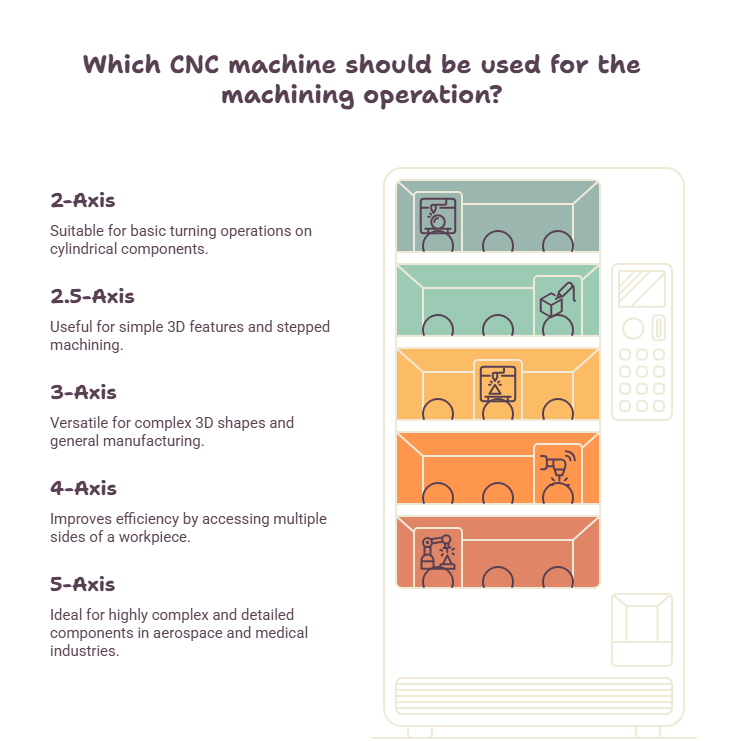

Imagine a sculptor with just a chisel (1-axis). They can only make very simple cuts. With a hammer and chisel (2-axis), they can create more complex shapes by adding depth.

CNC machines work similarly. More axes allow for more “tools” (movement directions) to tackle the workpiece. Here’s how:

  • 3-axis (X, Y, Z): This is like having a chisel, hammer, and saw. You can make intricate cuts in all directions on a solid block.
  • 4-axis (X, Y, Z + A/B): Imagine adding a rotating platform to your workspace. Now you can access multiple sides of the workpiece without moving it, making complex cuts on different planes.
  • 5-axis (X, Y, Z + A & B): This is like having a fully articulated arm holding your tools. You can approach the workpiece from any angle for highly detailed and contoured machining.

With more axes, it’s like having a more versatile toolbox to tackle intricate shapes and angles on your workpiece.

Conclusion:

CNC machines come in two main flavours: subtractive and additive.

  • Subtractive CNC cuts away material to form a desired shape. This includes:
    • Milling: Uses rotating tools for complex 3D shapes on various materials. (think carving intricate designs)
    • Turning: Rotates the workpiece for cylindrical or conical parts (axles, gears).
    • Drilling/Tapping: Creates holes and threads (essential for many parts).
    • Waterjet Cutting: Precisely cuts various materials with a high-pressure water jet (useful for intricate shapes on flat sheets).
    • Laser Cutting: Uses a focused laser to vaporize material for precise cuts on flat materials (sheet metal).
    • EDM: Employs electrical discharges for small features or hard materials (intricate mould cavities).
    • Plasma Cutting: Cuts conductive materials with a plasma torch (faster option for thicker metals).

CNC Machine

  • Additive CNC builds up a part layer by layer. This includes:
    • 3D Printing: Creates 3D objects from depositing material (versatile for prototypes or complex designs).
    • Metal Additive Manufacturing: Uses lasers or electron beams to build complex metal parts (used in aerospace or medicine for unique components).

Choosing the right machine depends on your project’s needs (material, size, complexity, precision) and whether you want to subtract material or build it up layer by layer.

If you’re looking for a CNC machining solution to turn your designs into reality, I can help you get started! With the variety of CNC machines available, there’s sure to be a perfect fit for your project. Consider factors like material, complexity, and production volume to narrow down your options. If you have any further questions about CNC machining in general, I’m happy to help! You can contact us anytime.
