A Computer Numerical Control machine is controlled by a computer that manufactures tools that can rightly cut, drill, carve, and shape different materials like metal, wood, plastic, and composites. A CNC machine working is done by a set of instructions that are programmed to perform accurate operations of the machine on different materials like metal, wood, plastic, and composites. CNC machining like Laser Cutting Machines, CNC Drilling Machines, CNC Plasma Cutters, and many more.

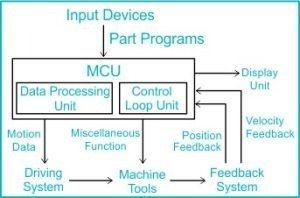

Overview of CNC Machine Working
Step 1: Designing the Part:
The first process is to design components by the use of software called CAD (Computer-Aided Design). CAD software permits engineers or designers the create a 3D model of the part and also, includes its dimensions and features. Design a single part for Computer Numerical Control machining includes different steps to ensure that the final product meets the requirement of specifications and can also be manufactured efficiently.
Step 2: Creating CNC Program:
As the first step of designing is completed, the CAD model converts into a program of CNC by the use of software called CAM (Computer-Aided Manufacturing). CAM program includes instructions that tell the right movements and the operations that are required for manufacturing the part. In the Creation of a CNC, the program includes converting a part of the design into a single set of instructions (G-code) which could CNC machine will follow to manufacture parts.
Step 3: Setting Up the Machine:
The operator of the Computer Numerical Control machine loads the CNC program into the control unit of the machine. They also mount the workpiece carefully onto the machine’s worktable or fixture. Setting up a machine involves machine preparation, workpiece setup, tool setup, CNC program loading, cutting parameters adjustment, tool and workpiece measurement & test run, and final checks.
Step 4: Execution of Program:
Next is the execution of the program of the CNC machine working, which includes a set of series of movements with the X, Y, and Z axes. To execute the machine the first is to initialize the machine, and verify the workpiece and tool, pre and postexecution checks are important.
Step 5: Monitoring and Quality Control:
In the process of machining, the operator monitors the operation of the machine and also ensures that all of the things are proceeding according to the planned manner. Another thing is they also perform quality checks on the workpiece to confirm it meets the required tolerances and specifications. The process of monitoring and quality control are important things in CNC machining to confirm the accuracy, consistency, and reliability of machined parts.
Step 6: Completion of CNC Machine Working:
After the completion of the machining process, the last step is to remove from the machine. It depends on the complexity of the part and also the particular requirements of the application, additionally finishing operations like deburring, polishing, or surface treatment could be necessary. In the last step quality assurance is important to verify the accuracy of dimensions, also packaging and shipping.
G-Code vs M-Code in CNC Machining
CNC (Computer Numerical Control) machines operate using specific programming languages, primarily G-Code and M-Code. While both are essential for controlling the machine, they serve distinct purposes.
G-Code, also known as Geometric Code, is responsible for defining the movement and positioning of the machine’s tool. It instructs the machine on how to move, whether in a straight line or along a curve, and at what speed and feed rate. Commands like G00 (rapid positioning) and G01 (linear interpolation) determine the motion, while G90 (absolute positioning) and G91 (incremental positioning) help in setting the coordinate system. G-Code essentially dictates how the cutting tool interacts with the material, ensuring precision and efficiency.
On the other hand, M-Code, or Miscellaneous Code, controls the non-motion functions of the machine. It handles essential operations like turning the spindle on or off, managing coolant flow, and stopping or ending the program. Commands such as M03 (spindle on in a clockwise direction), M05 (spindle stop), M08 (coolant on), and M09 (coolant off) ensure the smooth operation of the machine’s auxiliary systems. Unlike G-Code, which focuses on movement, M-Code deals with the supporting functions that enable the machine to operate efficiently.
Conclusion:
In summary, CNC machines offer high precision, repeatability, and efficiency in the manufacturing of a wide range of parts and components for different industries, like automotive, aerospace, electronics, and healthcare. In the process of machining, continuous improvement efforts, adherence to quality standards, and effective communication with customers are important for the confirmation of the production.
FAQs
What is CNC machine and how it works?
A CNC (Computer Numerical Control) machine is an automated manufacturing tool that uses computer programming to control its movements. It processes materials like metal, wood, and plastic with high precision. The process starts with a CAD (Computer-Aided Design) model, which is converted into G-code, a programming language that directs the machine’s operations. CNC machines execute tasks like cutting, milling, drilling, and engraving with minimal human intervention. Sensors and motors ensure accuracy and repeatability. Common types include CNC routers, lathes, and milling machines. They enhance efficiency, reduce errors, and are widely used in industries like automotive, aerospace, and manufacturing.
What is the process of CNC?
The CNC (Computer Numerical Control) process involves using computerized controls to automate machining tools for precision manufacturing. It starts with designing a part using CAD (Computer-Aided Design) software, which is then converted into CNC code (G-code) via CAM (Computer-Aided Manufacturing) software. This code directs the CNC machine’s movements, controlling parameters like speed, feed rate, and toolpath. The machine then executes the programmed instructions to cut, mill, drill, or shape the material with high accuracy. CNC machining ensures consistency, efficiency, and minimal human intervention, making it ideal for mass production and complex designs in industries like aerospace, automotive, and medical.
What is the CNC machining process?
CNC (Computer Numerical Control) machining is a manufacturing process where pre-programmed computer software controls machine tools to produce precise and complex parts. It automates cutting, drilling, milling, and turning operations, eliminating the need for manual intervention. The process starts with a CAD (Computer-Aided Design) model, which is converted into CNC code to guide the machine’s movements. CNC machining ensures high accuracy, repeatability, and efficiency, making it ideal for industries like aerospace, automotive, and medical. It works with various materials, including metals, plastics, and composites, enabling the production of intricate designs with tight tolerances and minimal human error.
How does a CNC code work?
CNC (Computer Numerical Control) code, commonly written in G-code, directs CNC machines to perform precise machining tasks. The code consists of commands that control movement, speed, feed rate, and tool actions. Each command line typically starts with a letter (e.g., G for geometry, M for machine functions) followed by numbers defining parameters. The machine reads and executes the code line by line, guiding tools along programmed paths. Coordinates (X, Y, Z) specify positioning, while spindle speed (S) and feed rate (F) adjust cutting dynamics. CNC code ensures accuracy, automation, and repeatability in manufacturing processes like milling, turning, and drilling.
What is the principle of CNC?
The principle of CNC (Computer Numerical Control) is based on the automation of machine tools using pre-programmed computer software. CNC systems control various machining processes such as cutting, milling, drilling, and turning with high precision. The process begins with a digital design, which is converted into a CNC program using G-code. This code dictates the movement, speed, and operation of the machine. CNC machines operate in multiple axes, allowing for complex and accurate production. The key advantages include repeatability, efficiency, and reduced human intervention, making CNC technology essential in modern manufacturing industries for producing high-quality and consistent components.
What is a G-code?
G-code is the programming language used to control CNC (Computer Numerical Control) machines. It consists of a series of commands that direct machine tools on how to move, cut, drill, or mill materials with precision. Each line of G-code specifies actions such as speed, feed rate, positioning, and toolpath. Common commands include “G00” for rapid movement, “G01” for linear cutting, and “G02/G03” for circular interpolation. G-code ensures automation, accuracy, and efficiency in manufacturing processes. It is generated manually or through CAD/CAM software and is widely used in industries like automotive, aerospace, and metal fabrication for precision machining.
What is the basics of CNC?
CNC (Computer Numerical Control) is a manufacturing process where pre-programmed computer software controls the movement of machinery and tools. It automates operations like cutting, drilling, milling, and turning with high precision. CNC machines use G-code, a programming language that dictates speed, movement, and positioning. They operate in multiple axes (X, Y, Z) for complex designs. Common types include CNC mills, lathes, routers, and plasma cutters. CNC machining enhances efficiency, reduces human error, and allows mass production with consistent quality. Industries like aerospace, automotive, and medical rely on CNC for intricate parts and high-speed manufacturing.
What is the G code and M code?
G-code (Geometric Code): It controls the movement of the CNC machine, specifying actions like linear motion (G01), rapid movement (G00), and circular interpolation (G02/G03).
M-code (Miscellaneous Code): It handles machine operations like spindle control (M03/M04 for on, M05 for off), coolant activation (M08/M09), and program stops (M00/M01).
